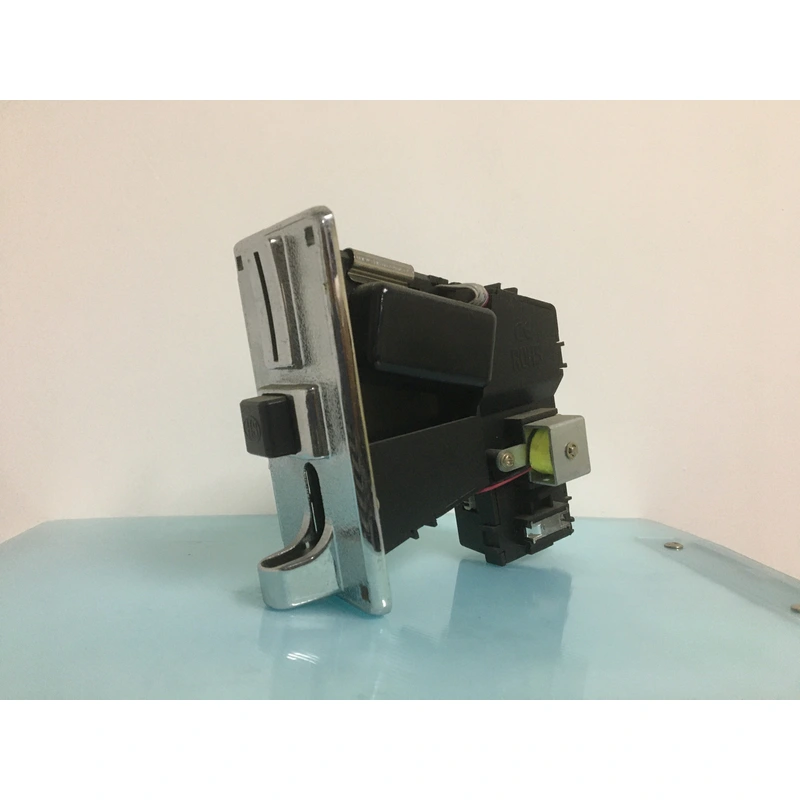

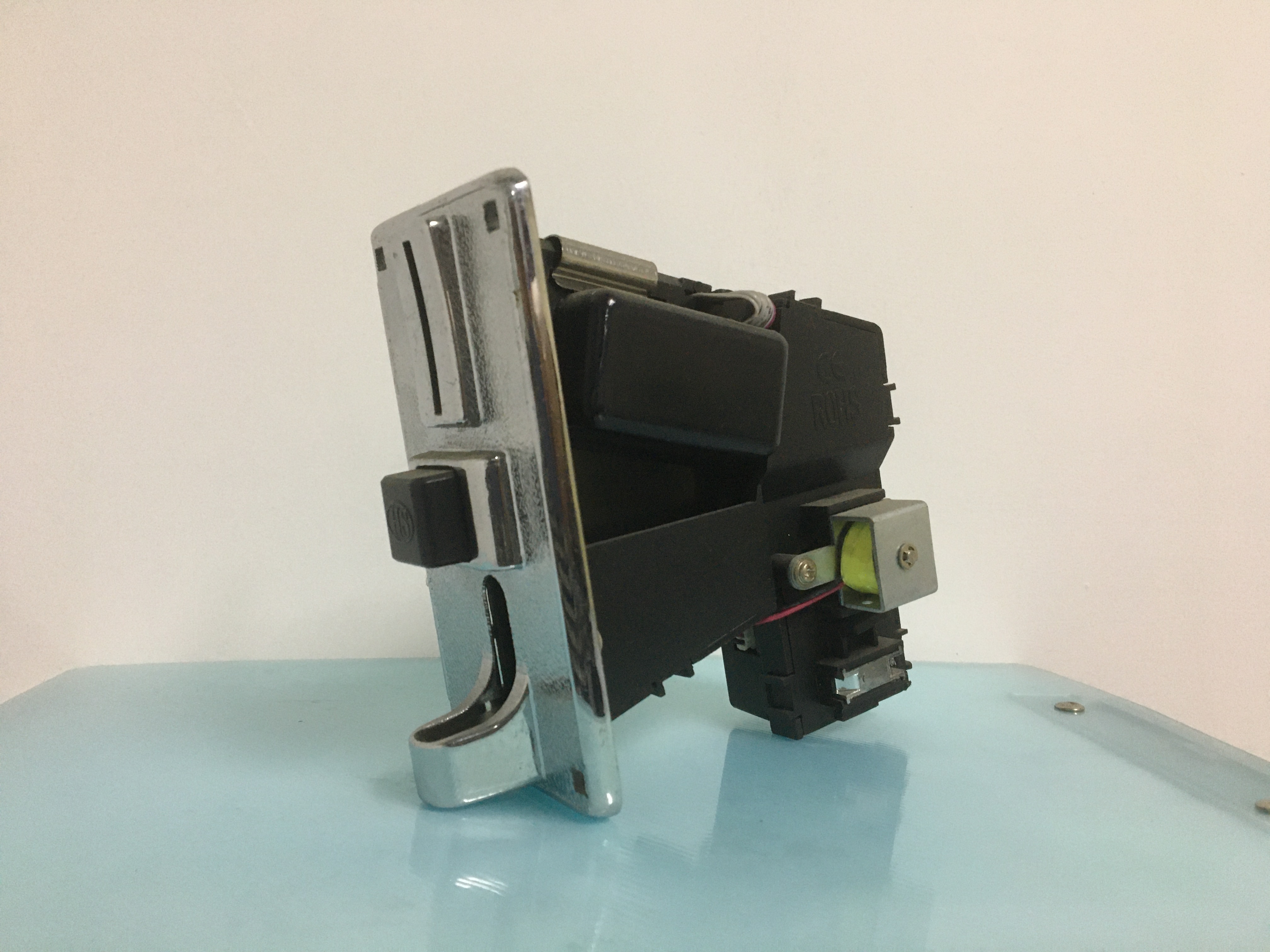

Electronic coin acceptor.

Model: 631 （metal panel）

Operating Voltage: DC12V±12%

Operating Temperature: -10℃~+85℃

Coin Diameter: 15mm~32mm

Coin Thickness: 1.0mm~3.5mm

Features:

1.Capable of accepting all worldwide coins and tokens.

2.Intelligent CPU software control, and high accuracy.

3.Accept 1 type of coins at the same time.

4.Free to set up pulses output.

5.Prevent not only electric shock but also electromagnetic interference.

6.Automatic self-test for problems.

7.Support 1 coin with only one signal output.

8.Support 1 coin with several pulse output.

(only 1 coin for 1 pulse output in default, please leave us message if you need 1 coin for several pulse out)

Size:

Dimensions: width 64mm, height 123mm, depth 143mm

Panel size: length 124mm * width 64mm

Screw hole and hole distance: screw hole 5mm*5mm, hole distance 46mm*97mm
